Understanding the Cylinder Head Gasket: Function, Failure, and Replacement

31 Jul.,2025

Understanding the Cylinder Head Gasket: Function, Failure, and Replacement.The cylinder head gasket (CHG) is a critical yet often overlooked component in an internal combustion engine. It serves as a seal between the engine block and the cylinder head, ensuring proper compression, coolant and oil flow, and overall engine efficiency.

What is cylinder head gasket

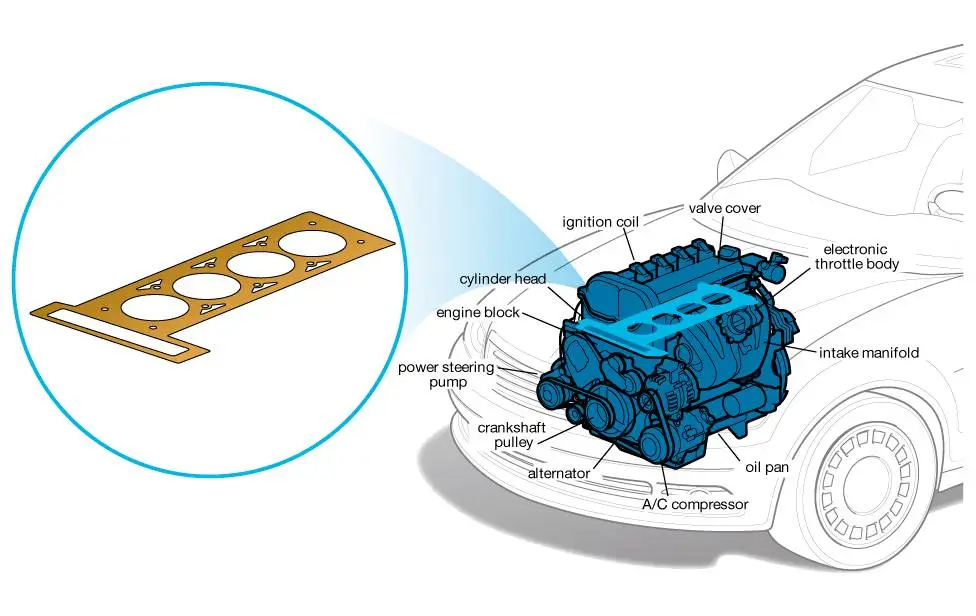

The cylinder head gasket (CHG) is a critical yet often overlooked component in an internal combustion engine. It serves as a seal between the engine block and the cylinder head, ensuring proper compression, coolant and oil flow, and overall engine efficiency. Despite its small size, a failing head gasket can lead to severe engine damage if not addressed promptly.

Function of the Cylinder Head Gasket

Sealing Combustion Chambers

– It maintains compression within the cylinders, allowing efficient combustion.

Separating Oil and Coolant Passages

– It prevents engine oil and coolant from mixing while ensuring both fluids flow correctly.

Maintaining Engine Pressure

– It helps sustain proper pressure in the cylinders for optimal performance.

Heat Resistance

– It withstands extreme temperatures and pressure fluctuations between the engine block and cylinder head.

Common Causes of Cylinder Head Gasket Failure

Overheating – Excessive engine heat can warp the cylinder head or damage the gasket.

Poor Installation – Incorrect torque specifications or improper gasket alignment during installation can cause leaks.

Engine Detonation – Abnormal combustion (knocking) increases pressure, damaging the gasket.

Age and Wear – Over time, the gasket material deteriorates due to constant thermal cycling.

Low Coolant or Oil Levels – Insufficient lubrication or cooling accelerates wear.

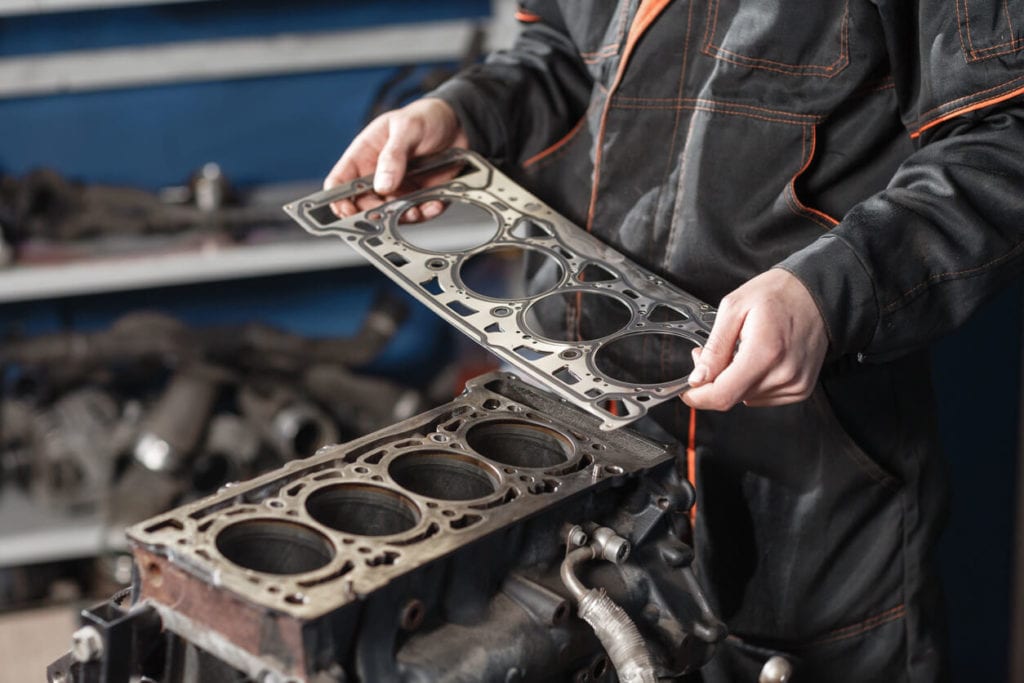

Repair Process

Engine Disassembly – Cylinder head must be removed to access gasket.

Surface Inspection – Engine block and cylinder head should be inspected for warpage and machined if necessary.

Gasket Replacement – Install new, high-quality gaskets with proper torque specifications.

Reassembly and Testing – Reassemble engine, refill coolant/oil system and check for leaks.

Preventing Cylinder Head Gasket Failure

Regular Maintenance – Monitor coolant and oil levels; replace as recommended.

Avoid Overheating – Repair cooling system problems (thermostat, radiator, water pump) promptly.

Proper Installation – Always follow manufacturer’s torque specifications when replacing cylinder head gaskets.

Use Quality Coolant – Prevents corrosion and maintains optimum engine temperature.
