How Does A Mechanical Water Seal Work?

How Does A Mechanical Water Seal Work?At its core, a mechanical water seal comprises two principal components: a stationary part and a rotating part. These elements work in conjunction to create a robust barrier against fluid leakage.

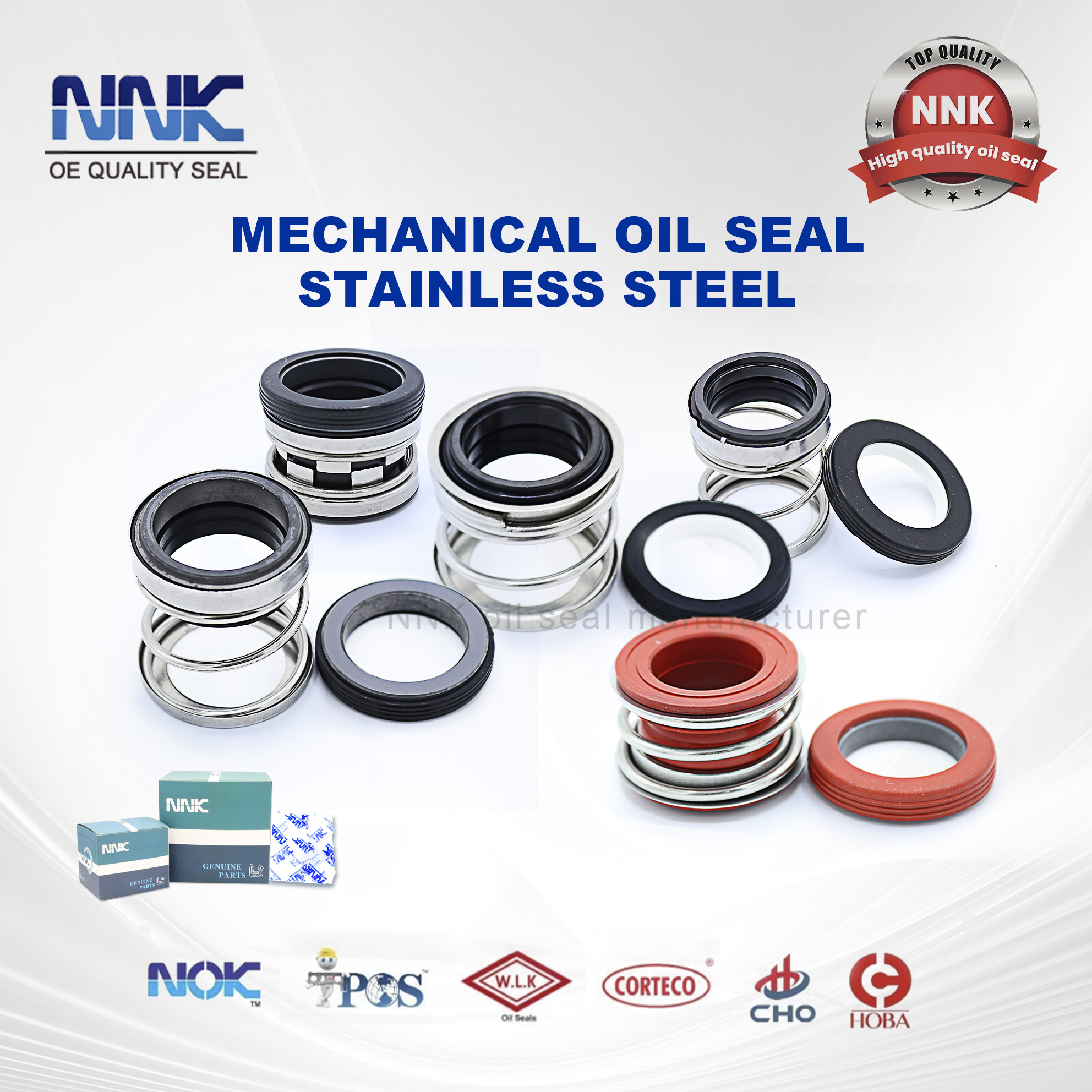

Mechanical Water Seal

In industrial applications where equipment cleanliness and performance are paramount, the mechanical water seal emerges as an indispensable component. This innovative sealing technology is designed to prevent fluid leakage while simultaneously allowing for the smooth operation of rotating machinery. Mechanical water seals are most commonly used in pumps, compressors, and various types of rotating shafts where protection from water and other fluids is critical to ensure operational efficiency and minimize maintenance costs.

Understanding How a Mechanical Water Seal Works

At its core, a mechanical water seal comprises two principal components: a stationary part and a rotating part. These elements work in conjunction to create a robust barrier against fluid leakage. The mechanics of the seal involve the use of friction and pressure, with the interaction between two opposing surfaces forming the core of its functionality.

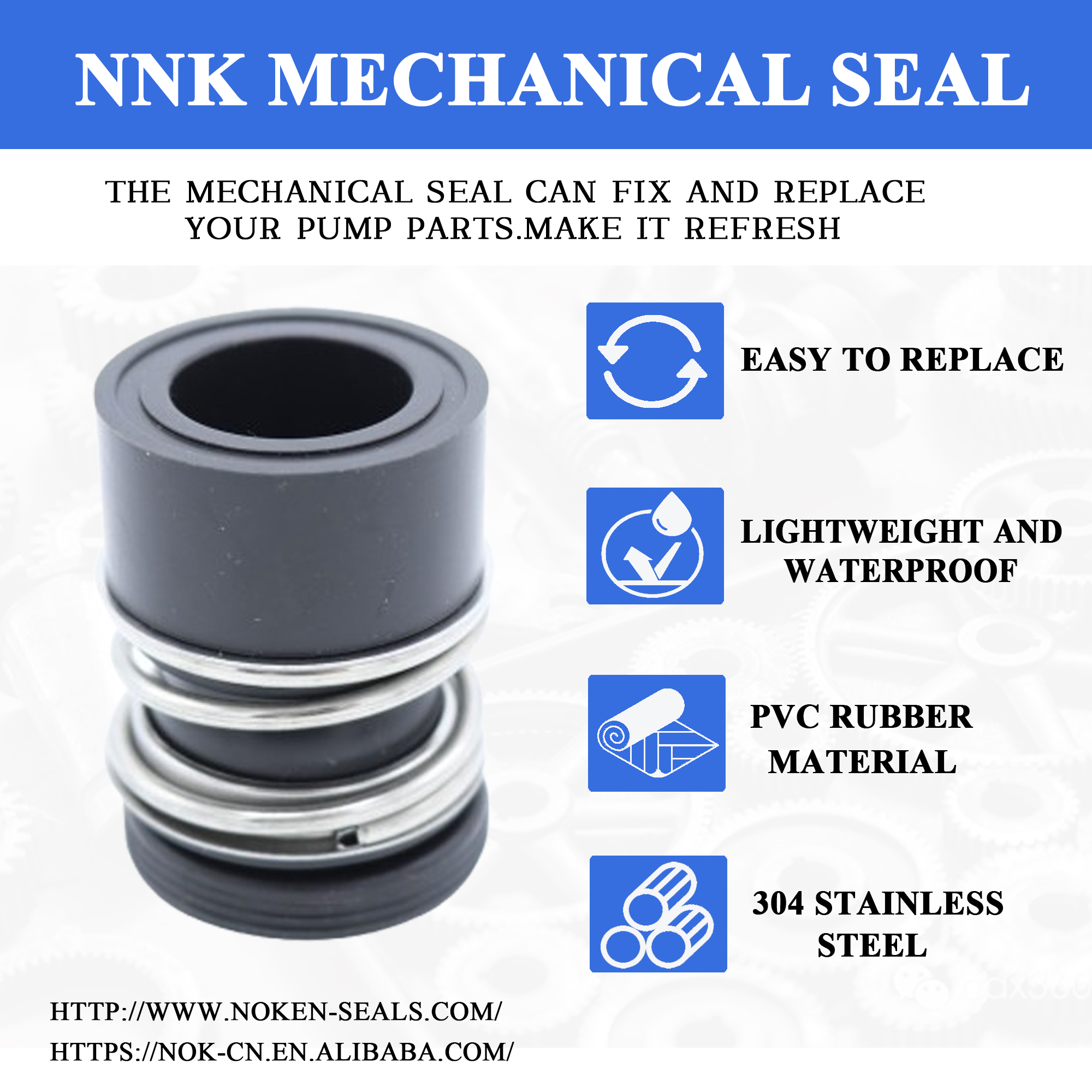

Components of a Mechanical Water Seal

-Rotating Element: This component is typically mounted on a shaft and rotates alongside it. Made from durable materials like ceramic or carbon, it is designed to withstand wear and thermal stress. - **Stationary Element:** Mounted to the housing or casing of the equipment, this part remains fixed and engages with the rotating element. Like its counterpart, it is made from high-performance materials to endure the challenges of operational environments.

- Spring Mechanism: A set of springs helps to maintain constant pressure between the rotating and stationary elements. The pressure assists in keeping the sealing surfaces in close contact, thus preventing any fluid seepage.

- Fluid Interface: As the mechanism operates, a thin film of fluid—typically water in the case of a mechanical water seal—is maintained between the two surfaces. This interface not only lubricates the surfaces but also enhances the sealing effect.









Operating Principles

- Hydrodynamic Action: As the rotating element spins, it generates a hydrodynamic effect, which helps to keep the water in the system while minimizing wear on the seal surfaces. The fluid film created serves as a barrier that prevents direct contact between the sealing surfaces, thereby reducing friction and prolonging the life of the seal.

- Pressure Balance: The sealing surfaces operate under a specific pressure that is essential for optimal performance. The spring mechanism applies just the right amount of force to keep the surfaces in contact, ensuring that any pressure differential—from either the fluid side or the atmosphere—is effectively countered.

- Self-AdjustingNature: The mechanical water seal self-adjusts to accommodate minor shaft misalignments or axial movements that might occur during operation. This feature ensures that the seal remains effective under varying operational conditions, maintaining robust leakage control even in fluctuating environments.
