Taking Precision Testing as the Cornerstone, We Create a Quality Benchmark for CNC Non-Standard Customized Workpieces
Cangzhou Furui Hardware Manufacturing Co., Ltd. was established in 2008. It has been deeply involved in the field of precision machining for 15 years and focuses on the research and development and production of non-standard customized workpieces.
1. Enterprise Strength and Mission
Cangzhou Furui Hardware Manufacturing Co., Ltd. was established in 2008. It has been deeply involved in the field of precision machining for 15 years and focuses on the research and development and production of non-standard customized workpieces. Since its establishment, the company has always adhered to the core values of "quality first, technological innovation" and is committed to providing customers with high-precision and high-quality CNC non-standard customized workpieces. Through continuous technological accumulation and process optimization, we have developed into a company with significant influence in the industry. Our mission is to promote the improvement of the quality of CNC non-standard customized workpieces through the continuous innovation of precision testing technology, and to escort customers' production efficiency and product quality.
2. Detailed Explanation of The Whole Process of Precision Testing
With the goal of "zero defects", Furui Hardware has built a comprehensive testing system covering dimensions, form and position tolerances, and material properties. The key equipment and technologies are as follows:
1. Dimensional Accuracy Detection
● Inner Diameter Detection:

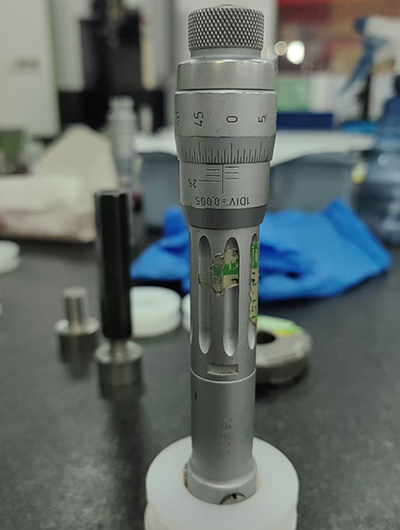

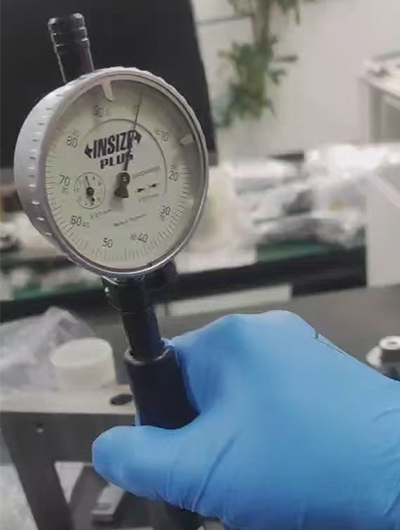

- Inner diameter micrometer: resolution 0.001mm, accurate measurement of deep holes or complex cavities, error control within ±2μm.
- Three-claw micrometer: three-point measurement method eliminates workpiece deformation error, suitable for tapered holes or special-shaped inner diameters.

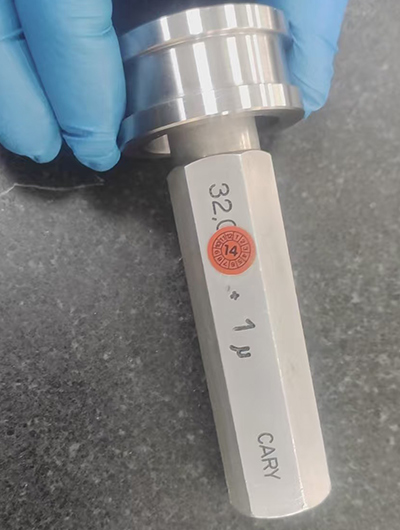

- Go/no-go gauge: quickly determine the inner diameter qualification, ensure batch production consistency, and increase detection efficiency by 50%.
● External Diameter Detection:

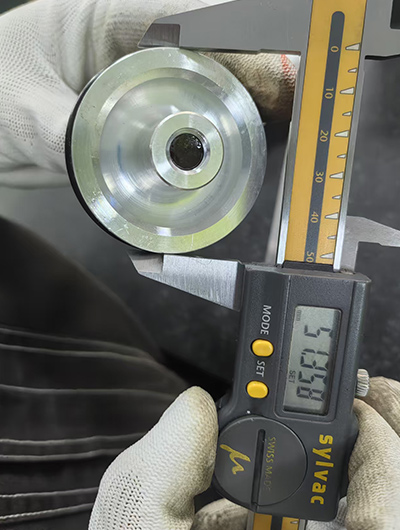

- Vernier Caliper (0.02mm) and external micrometer (0.001mm): suitable for conventional and precision external diameter measurement, covering the range of φ0.5mm to φ500mm.
2. Geometric Tolerance and Surface Quality
- Runout and cylindricity detection:

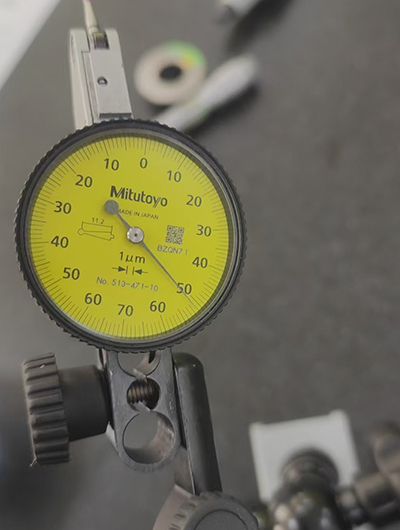

- Micrometer dial: Real-time monitoring of workpiece radial runout, error ≤ 2μm, to ensure rotation accuracy.

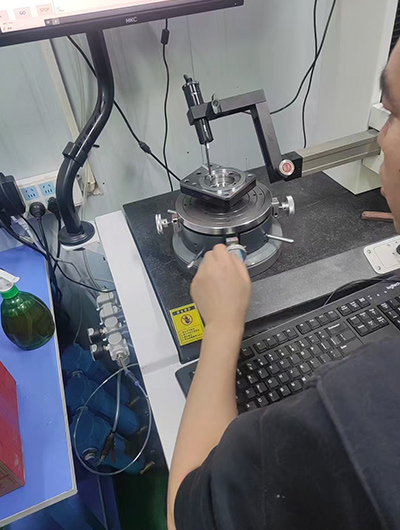

- Cylindricity meter: Analyze cylindrical profile through laser scanning to eliminate taper or ovality deviation.

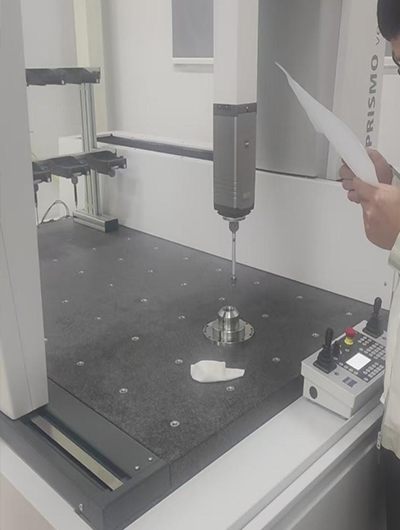

- Three-dimensional coordinate measuring machine: Three-dimensional scanning to detect geometric tolerance (such as parallelism, verticality, flatness), with an accuracy of 1μm.
3. Material Performance Verification
- Hardness test: Rockwell/Vickers hardness tester simultaneous testing, covering the range of HRC15 to HRC68, to ensure the wear resistance and fatigue resistance of the material.
3. Technical Advantages and Customer Value
1. Full-Process Traceability System:
Each product is equipped with a unique code, and the data from raw material procurement to final inspection is recorded throughout the process to support quality traceability and problem location.
2. Customized Inspection Solutions:
Develop special inspection fixtures and algorithms for special customer needs (such as micro parts, high-precision special-shaped parts) to meet the ultra-precision requirements of ±0.002mm.
3. Intelligent Upgrade:
Introduce AI image recognition system to realize automatic judgment of surface defects (such as scratches and burrs), and improve inspection efficiency by 30%.
4. Outlook and Cooperation Invitation
Furui Hardware has always taken "technological innovation and quality-oriented" as its core concept, relying on advanced testing equipment and strict quality control to continuously improve the competitiveness of non-standard customized products. In the future, the company will increase R&D investment, introduce intelligent testing systems, further shorten delivery cycles, and reduce error rates.
